LTMR100EFM SCHNEIDER Tesys T Smart Management Motor Controller

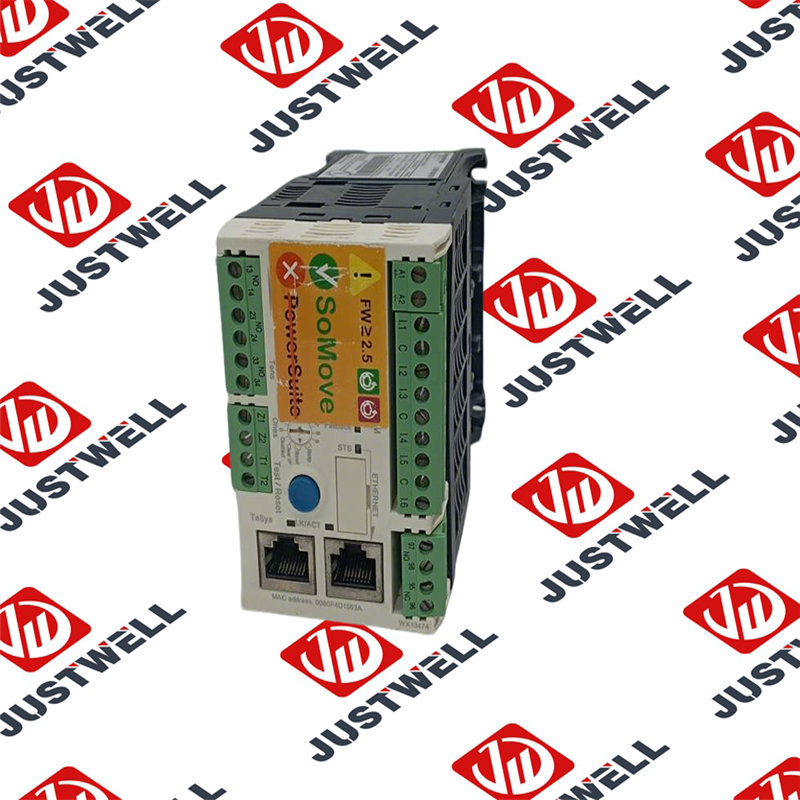

Description LTMR100EFM SCHNEIDER Tesys T Smart Management Motor Controller Product Dimensions： Product Description (Detailed Explanation) The LTMR100EFM serves as the digital heart of a motor starter. Unlike traditional thermal overload relays, this controller utilizes integrated current transformers to monitor motor health in real-time. It provides comprehensive protection against electrical faults while acting as an intelligent data source for maintenance systems. The “EFM” designation is key: EF: Indicates support for Ethernet communication protocols (Modbus TCP and EtherNet/IP). M: Indicates the controller includes an internal ground current transformer (Ground Fault protection). Product Parameters (Technical Specifications) Parameter Category Specification Current Range 5 A to 100 A (Adjustable) Control Circuit Voltage 100 to 240 V AC (50/60 Hz) Communication Protocol Dual Port Ethernet (Modbus TCP / EtherNet/IP) Inputs/Outputs 6 Discrete Inputs / 3 Relay Outputs Measurement Functions Current (Average, Phase Unbalance, Earth Fault) Protection Functions Overload, Phase Loss, Stall, Jam, Ground Fault, etc. Data Logging Fault history (last 5 faults), operating time, statistics Mounting 35 mm DIN Rail or Screw Mount Certifications CE, UL, CSA, CCC, Marine certified Product Advantages (Key Benefits) Network Convergence: The dual-port Ethernet allows for “Daisy Chain” wiring, reducing the need for external switches and simplifying cabling. High Accuracy: Digital monitoring provides far superior precision compared to electromechanical relays, preventing unnecessary downtime caused by “nuisance trips.” Predictive Maintenance: By tracking motor runtime and number of starts, the system alerts operators to perform maintenance before a failure occurs. Flexible Control: The 6 programmable inputs and 3 relay outputs allow the controller to manage complex start/stop sequences locally (e.g., Star-Delta or Reversing). Reduced Footprint: Replaces multiple devices (overload relay, ammeter, earth fault relay, and communication gateway) with one compact module. Precautions (Important Notes) Wiring Polarity: Ensure that the 240V AC control power is wired correctly to the dedicated terminals to prevent damaging the internal logic board. CT Orientation: If using external current transformers (for motors >100A), ensure the orientation of the CTs matches the phase sequence defined in the configuration. Grounding: The internal ground fault protection (the “M” feature) requires proper grounding of the motor frame and the controller for accurate leakage current detection. IP Address Setup: Ensure the IP address is configured correctly via the rotary switches on the front or through SoMove software before connecting it to a live network to avoid address conflicts. Product Applications (Typical Use Cases) Critical Infrastructure: Protecting large pumps and fans in water treatment plants and HVAC systems for high-rise buildings. Oil & Gas / Mining: Monitoring motors in remote or hazardous locations where unplanned maintenance is extremely costly. Material Handling: Managing conveyors and sorters in logistics centers where Ethernet-based diagnostics are required for rapid troubleshooting. Food & Beverage: Used in processing lines where precise current monitoring helps detect mechanical jams or overloaded mixers. Smart Motor Control Centers (iMCC): Integrating motor starters into a centralized SCADA or DCS system via EtherNet/IP for full plant transparency. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： SCHNEIDER 140CPU31110C SCHNEIDER 140NRP95400 SCHNEIDER 140NOM25200C SCHNEIDER 140CPU43412AC SCHNEIDER 140SDI95300S SCHNEIDER 140NOM21200C SCHNEIDER 140CPU43412U SCHNEIDER 140SDO95300S SCHNEIDER 140NOM21100C SCHNEIDER 140CPU43412UC SCHNEIDER TSXP57303AM SCHNEIDER 140NOE77111C SCHNEIDER 140CPU53414BC SCHNEIDER 416NHM30032A SCHNEIDER 140NOE77101C SCHNEIDER 140CPU65260C SCHNEIDER 416NHM30030A SCHNEIDER 140NOC78100C SCHNEIDER 140CPU65160C SCHNEIDER LC1D09M7C SCHNEIDER 140NOC78100 SCHNEIDER 140CHS11000C SCHNEIDER 140AC013000 SCHNEIDER 140NOC78000C SCHNEIDER 140CHS21000C SCHNEIDER 140CPS12400R SCHNEIDER 140HLI34000C SCHNEIDER BMXDDI1602 SCHNEIDER 140NOM211OO SCHNEIDER 140ESI06210C SCHNEIDER BMXDDO1602 SCHNEIDER 140NWM10000 SCHNEIDER 140ERT85420C SCHNEIDER BMXAMI0810 SCHNEIDER 140XCP90000C SCHNEIDER 140EIA92100C SCHNEIDER BMXAMO0802 SCHNEIDER 140XBP01600C SCHNEIDER 140EHC20200C SCHNEIDER BMH2052P11A2A SCHNEIDER 140XBP01000C SCHNEIDER 140EHC10500C SCHNEIDER BMXDAO1605 SCHNEIDER 140XBP00600C SCHNEIDER 140DVO85300C SCHNEIDER BMXCPS3020 SCHNEIDER 140XBP00400C SCHNEIDER 140DSI35300C SCHNEIDER BMXDDO6402K SCHNEIDER 140XBP00300C SCHNEIDER 140DRC83000C SCHNEIDER BMXP342020H SCHNEIDER 140XBE10000C SCHNEIDER 140DRA84000C SCHNEIDER BMXEHC0800 SCHNEIDER 140NRP95400C SCHNEIDER 140DDO88500C SCHNEIDER BMXAMO0410 SCHNEIDER 140NRP95401C SCHNEIDER 140DDO84300C SCHNEIDER BMXXBP1200 SCHNEIDER 140NRP31201C SCHNEIDER 140DDO35310C SCHNEIDER 140CRA21120 SCHNEIDER 140NRP31201 SCHNEIDER 140DDO35301C SCHNEIDER 140ERT85420 SCHNEIDER 140NRP31200C SCHNEIDER 140DDO15310C SCHNEIDER 140N0E77100 SCHNEIDER 140NRP31200 SCHNEIDER 140DDO35300C SCHNEIDER 140NOC78000 SCHNEIDER 140NOP85000 SCHNEIDER 140DDM69000C
